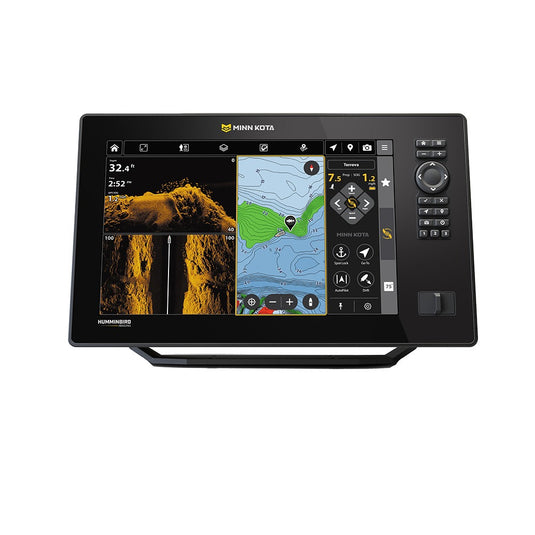

The Minn Kota X12 X Series 12" Fish Finder and Chartplotter combines advanced Humminbird Imaging technology, GPS navigation, and integrated boat control into one powerful fishing system. Featuring a bright 12.1" high-resolution touchscreen, Compact MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar, the X12 delivers detailed underwater imaging to help locate fish, identify structure, and navigate with confidence.
This CMSI+ model includes the XM 14 HW CMSI T transom-mount transducer, providing high-resolution Side Imaging, Down Imaging, and traditional 2D sonar. The X12 also integrates with compatible Minn Kota trolling motors, shallow water anchors, and networking accessories to create a connected fishing system.
Key Features
-
12.1" High-Resolution Display: Bright 1280 × 800 color touchscreen delivers excellent clarity for viewing sonar, charts, and navigation information, even in direct sunlight, rain, or while wearing polarized sunglasses.
-
Compact MEGA Side Imaging+: High-frequency imaging reveals fish, cover, and underwater structure on both sides of the boat.
-
MEGA Down Imaging+: Detailed sonar imaging helps identify fish and structure directly beneath your boat.
-
Dual Spectrum CHIRP Sonar: Excellent traditional 2D sonar performance with improved target separation and fish identification.
-
Minn Kota System Integration: Connect compatible trolling motors, fish finders, mapping, and shallow water anchors for coordinated boat control.
-
Draw and Navigate: Draw a course directly on the touchscreen and let a compatible Minn Kota trolling motor automatically follow the route.
-
Intelligent Depth Control: Detects changing water depths, provides alerts, and can engage compatible Spot-Lock and shallow water anchors when necessary.
-
Live Sonar Compatible: Supports compatible live sonar accessories with Forward, Down, and Landscape viewing modes. Live sonar equipment sold separately.
-
Minn Kota Maps Included: Access built-in mapping and navigation features, with optional Minn Kota Maps Premium charting available.
-
AutoChart Live: Create custom fishing maps with depth contours, bottom hardness, and vegetation information. Includes eight hours of built-in recording time.
-
Built-In GPS Navigation: Save waypoints, create routes, record tracks, and navigate to fishing locations.
-
Cross Touch Interface: Operate the display using the touchscreen or physical keypad.
-
Minn Kota Fishing App: Wirelessly manage compatible equipment, organize waypoints, and access supported system features.
-
Ethernet Networking: Connect compatible fish finders, sonar accessories, and networking equipment.
-
NMEA 2000 Connectivity: Integrate compatible vessel data and marine electronics.
-
Wi-Fi Software Updates: Download updates directly to the display and distribute supported updates to connected equipment.
-
Media Tool: Capture screenshots and record sonar imaging for review and sharing.
Specifications
| Feature |
Specification |
| Manufacturer |
Minn Kota |
| Series |
X Series |
| Model |
X12 CMSI+ VX |
| Part Number |
412390-1VX |
| Display Size |
12.1" |
| Display Resolution |
1280 × 800 |
| Display Type |
Color TFT Touchscreen |
| Controls |
Touchscreen & Keypad |
| Standard Sonar |
Dual Spectrum CHIRP, MEGA DI+, MEGA SI+ |
| Included Transducer |
XM 14 HW CMSI T |
| Maximum Standard Sonar Depth |
600 ft |
| Maximum Down Imaging Depth |
400 ft at 455 kHz |
| Maximum Side Imaging Range |
800 ft side-to-side at 455 kHz |
| GPS |
Built-In |
| Waypoint Capacity |
10,000 |
| Route Capacity |
50 |
| Networking |
Ethernet, NMEA 2000 |
| Memory Card Slots |
Dual microSD |
| Power Input |
10.8–20 VDC |
| Power Draw |
2.4 Amps |
Compatibility
The Minn Kota X12 CMSI+ integrates with compatible Minn Kota and Humminbird marine electronics, including:
-
Compatible Minn Kota trolling motors
-
Minn Kota Talon shallow water anchors
-
Compatible MEGA Imaging transducers
-
Compatible live sonar systems
-
Supported Minn Kota and Humminbird Ethernet networks
-
NMEA 2000 marine networks
-
Optional Minn Kota Maps Premium charting
Additional networking cables or accessories may be required depending on your installation.
In-Dash Installation: An external GPS antenna is required when flush-mounting the X12 in a dash to maintain accurate positioning and navigation. Sold separately.
What's Included
Manufacturer Part Number: 412390-1VX
