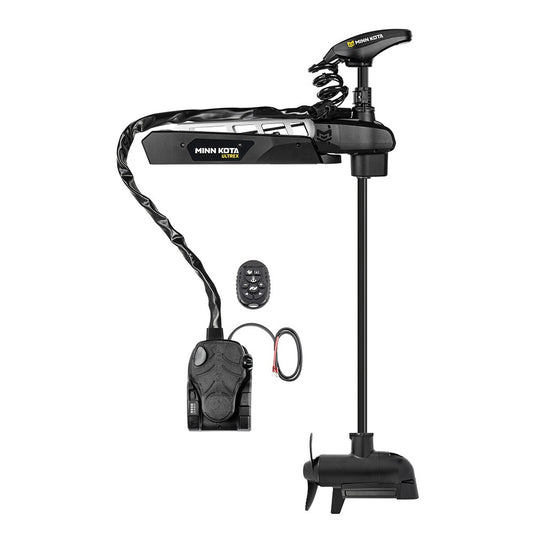

The Minn Kota Ultrex QUEST Q2 90/115 lb Trolling Motor combines the precise control of traditional cable steering with advanced brushless motor technology, built-in Humminbird MEGA Side Imaging, and GPS boat positioning. Featuring a 52" carbon-fiber-infused composite shaft, Instant Response foot pedal, and Micro Remote, the Ultrex QUEST Q2 is designed for freshwater anglers who demand accurate boat control around docks, vegetation, and underwater structure.
Powered by Minn Kota's QUEST brushless technology, this dual-voltage trolling motor delivers 90 lbs of thrust at 24V or 115 lbs at 36V. Its brushless design provides increased torque and improved runtime compared to traditional brushed trolling motors.
With improved Spot-Lock, Drift Mode, responsive cable steering, Lift-Assist, and One-Boat Network integration, the Ultrex QUEST Q2 combines familiar foot pedal control with advanced fishing technology.
Key Features
-
QUEST Brushless Motor Technology: Delivers increased torque, improved efficiency, and longer runtime compared to traditional brushed trolling motors.
-
90/115 lbs of Thrust: Dual-voltage operation provides 90 lbs of thrust at 24V or 115 lbs at 36V.
-
52" Carbon-Fiber-Infused Shaft: Durable composite shaft provides additional depth for boats requiring a longer trolling motor shaft.
-
Cable Steering with Power Steering: Combines the familiar feel and responsiveness of cable steering with power-assisted operation.
-
Instant Response Steering: Responsive heel-toe foot pedal provides precise steering control without excessive lag or oversteer.
-
Built-In Humminbird MEGA Side Imaging: Integrated Side Imaging, Down Imaging, and Dual Spectrum CHIRP sonar capabilities with compatible Humminbird electronics.
-
Improved Spot-Lock: Advanced GPS anchoring helps maintain boat position over productive fishing locations.
-
Drift Mode: Combines GPS speed and course control to maintain a controlled drift in wind and current.
-
Advanced GPS Trolling System: Record tracks, control steering and speed, and access supported automated navigation features.
-
Micro Remote Included: Compact wireless remote provides convenient access to supported trolling motor functions.
-
Programmable Foot Pedal Button: Assign supported functions such as waypoint marking, AutoPilot, or compatible shallow-water anchor operation.
-
Lift-Assist: Gas-charged spring system reduces the effort required to manually stow and deploy the trolling motor.
-
Draw and Navigate: Create routes on compatible connected electronics and have the trolling motor follow the selected course.
-
Follow Mode: Follow supported depth contours and weed lines using compatible Humminbird electronics and mapping.
-
Intelligent Depth Control: Works with compatible electronics and supported shallow-water anchors to monitor changing depths and activate protective functions.
-
One-Boat Network Compatibility: Integrates with compatible Humminbird fish finders and supported Minn Kota equipment.
-
Real-Time Battery Monitoring: Displays battery information and estimated remaining runtime to help manage power consumption.
-
Dual Propeller Options: Includes the MKP-39 Weedless Wedge 2 and MKP-40 Power Prop for different fishing conditions.
-
Lifetime Composite Shaft Guarantee: Minn Kota's carbon-fiber-infused composite shaft is backed by a lifetime guarantee.
Specifications
| Feature |
Specification |
| Manufacturer |
Minn Kota |
| Model |
Ultrex QUEST Q2 |
| Manufacturer Part Number |
1368926 |
| Maximum Thrust |
90 lbs at 24V / 115 lbs at 36V |
| Operating Voltage |
24V / 36V DC |
| Shaft Length |
52" |
| Mounting Location |
Bow |
| Application |
Freshwater |
| Motor Technology |
QUEST Brushless |
| Steering |
Cable Steer with Power Steering |
| Control |
Heel-Toe Foot Pedal & Micro Remote |
| Built-In Sonar |
Humminbird MEGA Side Imaging |
| Additional Sonar |
Down Imaging & Dual Spectrum CHIRP |
| GPS Anchor Lock |
Spot-Lock |
| AutoPilot |
Yes |
| Drift Mode |
Yes |
| One-Boat Network Compatible |
Yes |
| Speed Control |
Variable |
| Digital Maximizer |
Yes |
| Maximum Amp Draw |
58A |
| Propellers |
MKP-39 Weedless Wedge 2 & MKP-40 Power Prop |
| Automatic Stow/Deploy |
No |
| Power Trim |
No |
| Lift-Assist |
Yes |
| Product Weight |
85 lbs |
| Manufacturer Warranty |
2-Year Limited; Extended to 3 Years with Registration |
QUEST Brushless Motor Performance
The Ultrex QUEST Q2 features Minn Kota's advanced brushless motor technology, engineered to provide greater power, improved efficiency, and extended runtime.
Its dual-voltage design supports either a 24V or 36V trolling motor battery system:
QUEST brushless technology provides increased torque for maneuvering through heavy vegetation, maintaining boat position in wind and current, and controlling the boat around structure.
The 52" shaft provides additional length for bass boats and freshwater fishing boats that require more propeller depth than a shorter-shaft trolling motor.
Built-In Humminbird MEGA Side Imaging
The Ultrex QUEST Q2 features an integrated Humminbird MEGA Side Imaging transducer, providing detailed underwater imaging without requiring an externally mounted sonar transducer on the trolling motor.
When connected to a compatible Humminbird fish finder, the built-in sonar supports:
-
MEGA Side Imaging: Scan to the left and right of the boat to identify underwater structure, cover, and fish-holding areas.
-
MEGA Down Imaging: View detailed structure and fish targets directly beneath the boat.
-
Dual Spectrum CHIRP: Display traditional 2D sonar for fish detection, bottom tracking, and target separation.
The integrated transducer and internal cable routing provide a clean installation while helping protect sonar wiring from external damage.
A compatible Humminbird fish finder and the appropriate sonar connection are required to use the built-in imaging capabilities.
Important: This is the MEGA Side Imaging version of the Ultrex QUEST Q2, not the Dual Spectrum CHIRP-only model.
Cable Steering with Power Steering
The Ultrex QUEST Q2 combines traditional cable steering with power-assisted operation, giving anglers the familiar feel of a cable-steer trolling motor with reduced steering effort.
The Instant Response heel-toe foot pedal provides precise steering control, making it easier to maneuver around docks, laydowns, vegetation, and other structure.
Unlike electric-steer trolling motors, the Ultrex provides direct, responsive foot pedal control preferred by many bass anglers.
The programmable foot pedal button can be assigned to supported functions such as marking a waypoint, activating AutoPilot, or operating compatible shallow-water anchors.
Advanced GPS Boat Control
The Ultrex QUEST Q2 features Minn Kota's advanced GPS trolling system for accurate positioning and automated navigation.
Improved Spot-Lock automatically maintains your boat's position over a selected fishing location, reducing the need for constant steering corrections.
Drift Mode combines GPS speed and course control to maintain a consistent drift path, even when wind and current change.
AutoPilot maintains a selected heading while the trolling motor makes steering adjustments.
Draw and Navigate allows anglers to create routes on compatible connected electronics and have the trolling motor follow the selected course.
Follow Mode works with compatible Humminbird mapping and electronics to follow supported depth contours and weed lines.
Intelligent Depth Control works with compatible connected electronics and supported shallow-water anchors to detect changing depths, provide alerts, and activate supported protective functions.
Certain navigation features require compatible electronics, mapping, or additional connected equipment.
Micro Remote Control
The Ultrex QUEST Q2 includes Minn Kota's compact wireless Micro Remote, allowing anglers to access supported trolling motor functions without remaining at the foot pedal.
The Micro Remote is a convenient secondary control option for anglers who want to operate GPS positioning functions while moving around the boat.
The included Instant Response foot pedal remains the primary steering control.
Lift-Assist Stow & Deploy
The Ultrex QUEST Q2 features Minn Kota's Lift-Assist system, which uses a stainless steel, nitrogen gas-charged spring to reduce the effort required to raise and lower the trolling motor.
This makes manual stowing and deployment easier, particularly with the larger QUEST brushless motor.
The Ultrex QUEST Q2 does not feature automatic stow/deploy or electronic power trim.
Real-Time Battery Monitoring
The Ultrex QUEST Q2 includes real-time battery monitoring to help anglers manage power consumption throughout the day.
The system provides battery information and estimated remaining runtime while the motor is operating.
Supported monitoring features include low-battery notifications and an Eco Mode option to help conserve remaining power.
One-Boat Network Integration
The Ultrex QUEST Q2 integrates with compatible Humminbird fish finders and supported Minn Kota equipment through the One-Boat Network.
Depending on the connected system, anglers can access supported trolling motor controls, automated GPS navigation features, and coordinated operation with compatible shallow-water anchors.
Additional networking accessories or compatible electronics may be required.
What's Included
-
Minn Kota Ultrex QUEST Q2 90/115 lb Trolling Motor with 52" Shaft
-
Built-In Humminbird MEGA Side Imaging Transducer
-
Instant Response Foot Pedal
-
Micro Remote
-
Remote Lanyard
-
Bow-Mount Stabilizer
-
Hold-Down Strap
-
MKP-39 Weedless Wedge 2 Propeller
-
MKP-40 Power Prop
-
Mounting Hardware
Minn Kota Part Number: 1368926
Important: This is the Ultrex QUEST Q2 brushless model with built-in MEGA Side Imaging and a Micro Remote. It is different from the Dual Spectrum CHIRP-only Ultrex QUEST Q2 and the earlier Ultrex QUEST generation. The motor uses cable steering with Lift-Assist for manual stow/deploy.
Need help selecting the right trolling motor batteries, circuit breaker, mounting hardware, or Humminbird networking accessories? BassFishin Electronics can help you configure and install your Minn Kota Ultrex QUEST Q2 trolling motor.
