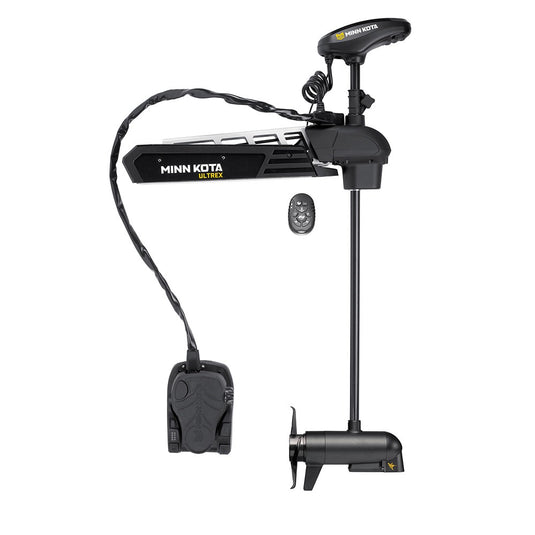

The Minn Kota Ultrex 2 80 lb Trolling Motor combines the precise control of traditional cable steering with power-assisted steering, advanced GPS navigation, and built-in Humminbird MEGA Down Imaging sonar. Featuring a 52" carbon-fiber-reinforced composite shaft, Instant Response foot pedal, and wireless Micro Remote, the Ultrex 2 is designed for freshwater anglers who demand responsive boat control around docks, vegetation, and underwater structure.
Powered by a 24V motor delivering 80 lbs of thrust, the Ultrex 2 provides dependable brushed-motor performance, variable-speed control, and Minn Kota's Digital Maximizer technology to help extend battery runtime.
With improved Spot-Lock, Drift Mode, Lift-Assist, and One-Boat Network integration, the Ultrex 2 combines familiar cable-steer operation with advanced GPS fishing technology.
Key Features
-
80 lbs of Thrust: Powerful 24V trolling motor designed for freshwater fishing applications.
-
52" Composite Shaft: Carbon-fiber-reinforced shaft provides additional length for boats requiring greater propeller depth.
-
Cable Steering with Power Steering: Combines traditional cable-steer responsiveness with reduced steering effort.
-
Instant Response Steering: Heel-toe foot pedal delivers precise steering control with minimal lag or oversteer.
-
Built-In Humminbird MEGA Down Imaging: Integrated Down Imaging and Dual Spectrum CHIRP sonar provide detailed underwater views with compatible Humminbird electronics.
-
Improved Spot-Lock: GPS anchoring helps maintain boat position over productive fishing locations.
-
Drift Mode: Uses GPS speed and course control to maintain a consistent drift path.
-
Advanced GPS Trolling System: Provides automated boat positioning, route recording, steering, and speed control.
-
Micro Remote Included: Compact wireless remote provides convenient access to supported GPS trolling motor functions.
-
Programmable Foot Pedal Button: Assign supported functions such as waypoint marking, AutoPilot, or compatible shallow-water anchor operation.
-
Lift-Assist: Gas-charged spring system reduces the effort required to manually stow and deploy the trolling motor.
-
Draw and Navigate: Create navigation routes using compatible connected electronics.
-
Follow Mode: Follow supported depth contours and weed lines with compatible Humminbird electronics and mapping.
-
Intelligent Depth Control: Works with compatible electronics and supported shallow-water anchors to respond to changing water depths.
-
One-Boat Network Compatibility: Integrates with compatible Humminbird fish finders and supported Minn Kota equipment.
-
Digital Maximizer: Variable-speed technology helps conserve battery power and extend runtime.
-
Weedless Wedge 2 Propeller: MKP-33 propeller provides dependable performance around aquatic vegetation.
-
Lifetime Composite Shaft Guarantee: Minn Kota's durable composite shaft is backed by a lifetime guarantee.
Specifications
| Feature |
Specification |
| Manufacturer |
Minn Kota |
| Model |
Ultrex 2 |
| Manufacturer Part Number |
1368893 |
| Maximum Thrust |
80 lbs |
| Operating Voltage |
24V DC |
| Shaft Length |
52" |
| Mounting Location |
Bow |
| Application |
Freshwater |
| Motor Technology |
Brushed |
| Steering |
Cable Steer with Power Steering |
| Control |
Heel-Toe Foot Pedal & Micro Remote |
| Built-In Sonar |
Humminbird MEGA Down Imaging |
| Additional Sonar |
Dual Spectrum CHIRP 2D |
| GPS Anchor Lock |
Spot-Lock |
| AutoPilot |
Yes |
| Drift Mode |
Yes |
| One-Boat Network Compatible |
Yes |
| Speed Control |
Variable |
| Digital Maximizer |
Yes |
| Maximum Amp Draw |
56A |
| Propeller |
Weedless Wedge 2 (MKP-33) |
| Automatic Stow/Deploy |
No |
| Power Trim |
No |
| Lift-Assist |
Yes |
| Listed Product Weight |
70.5 lbs |
| Manufacturer Warranty |
2-Year Limited; Extended to 3 Years with Registration |
Built-In Humminbird MEGA Down Imaging
The Ultrex 2 features an integrated Humminbird MEGA Down Imaging transducer, providing detailed underwater imaging without requiring an externally mounted sonar transducer on the trolling motor.
When connected to a compatible Humminbird fish finder, the built-in sonar supports:
-
MEGA Down Imaging: Provides detailed views of fish, structure, and cover directly beneath the boat.
-
Dual Spectrum CHIRP: Delivers traditional 2D sonar for fish detection, bottom tracking, and target separation.
-
Concealed Transducer Wiring: Internal cable routing helps protect sonar wiring and maintain a clean trolling motor installation.
The integrated transducer allows anglers to take advantage of Humminbird sonar technology while keeping external wiring to a minimum.
A compatible Humminbird fish finder and the appropriate sonar connection are required to use the built-in imaging capabilities.
Important: This is the MEGA Down Imaging version of the Ultrex 2. It provides Down Imaging and Dual Spectrum CHIRP sonar but does not include built-in MEGA Side Imaging.
Cable Steering with Power Steering
The Minn Kota Ultrex 2 combines the familiar feel of traditional cable steering with power-assisted operation.
The Instant Response heel-toe foot pedal provides precise steering control, allowing anglers to maneuver around docks, laydowns, vegetation, and other fish-holding structure.
The power steering system reduces steering effort while maintaining the responsiveness preferred by bass anglers.
The programmable foot pedal button can be assigned to supported functions such as marking a waypoint, activating AutoPilot, or operating compatible shallow-water anchors.
Advanced GPS Boat Control
The Ultrex 2 features Minn Kota's advanced GPS trolling system for accurate positioning and automated navigation.
Improved Spot-Lock automatically maintains your boat's position over a selected fishing location, reducing the need for constant steering corrections.
Drift Mode combines GPS speed and course control to maintain a consistent drift path, even when wind and current change.
AutoPilot maintains a selected heading while the trolling motor makes steering adjustments.
Draw and Navigate allows anglers to create routes on compatible connected electronics and have the trolling motor follow the selected course.
Follow Mode works with compatible Humminbird mapping and electronics to follow supported depth contours and weed lines.
Intelligent Depth Control works with compatible connected electronics and supported shallow-water anchors to detect changing depths, provide alerts, and activate supported protective functions.
Certain advanced navigation features require compatible electronics, mapping, or additional connected equipment.
Micro Remote Control
The Ultrex 2 includes Minn Kota's compact wireless Micro Remote, allowing anglers to access supported GPS trolling motor functions without remaining at the foot pedal.
The Micro Remote is a convenient secondary control option for activating Spot-Lock and managing supported navigation features while moving around the boat.
The included Instant Response foot pedal remains the primary steering control.
Lift-Assist Stow & Deploy
The Ultrex 2 features Minn Kota's Lift-Assist system, which uses a stainless steel, nitrogen gas-charged spring to reduce the effort required to raise and lower the trolling motor.
This makes manual stowing and deployment easier throughout the fishing day.
The Ultrex 2 does not feature automatic stow/deploy or electronic power trim.
Digital Maximizer Battery Efficiency
The Ultrex 2 features Minn Kota's Digital Maximizer technology, providing variable-speed control to help conserve battery power.
Rather than operating at fixed speed settings, the motor allows anglers to make precise speed adjustments based on fishing conditions.
A built-in battery meter provides battery status information to help manage available power.
One-Boat Network Integration
The Ultrex 2 integrates with compatible Humminbird fish finders and supported Minn Kota equipment through the One-Boat Network.
Depending on the connected system, anglers can access supported trolling motor controls, GPS navigation features, and coordinated operation with compatible shallow-water anchors.
Additional networking accessories or compatible electronics may be required.
What's Included
-
Minn Kota Ultrex 2 80 lb Trolling Motor with 52" Shaft
-
Built-In Humminbird MEGA Down Imaging Transducer
-
Instant Response Foot Pedal
-
Micro Remote
-
Remote Lanyard
-
Heading Sensor
-
Bow-Mount Stabilizer
-
Hold-Down Strap
-
MKP-33 Weedless Wedge 2 Propeller
-
Mounting Hardware
Minn Kota Part Number: 1368893
Important: This is the Ultrex 2 brushed 80 lb model with a 52" shaft and built-in MEGA Down Imaging. It is different from the Dual Spectrum CHIRP-only Ultrex 2 and the brushless Ultrex QUEST Q2 models. The motor uses cable steering with Lift-Assist for manual stow and deploy.
