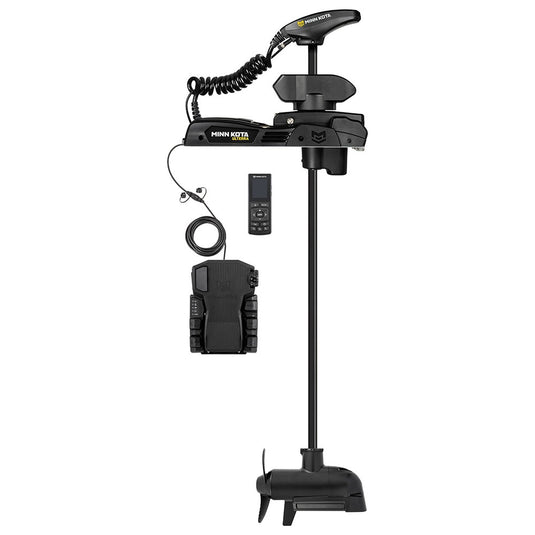

The Minn Kota Ulterra QUEST Q2 90/115 lb Trolling Motor combines powerful brushless motor technology, automatic stow and deploy, electronic power trim, and built-in Humminbird MEGA Side Imaging sonar. Featuring a 60" carbon-fiber-infused composite shaft, wireless remote, and electric-steer foot pedal, the Ulterra QUEST Q2 is designed for freshwater anglers who want precise boat positioning, detailed underwater imaging, and convenient trolling motor operation.
Powered by Minn Kota's QUEST brushless technology, this dual-voltage trolling motor delivers 90 lbs of thrust at 24V or 115 lbs at 36V. Its efficient motor design provides increased torque and longer runtime compared to traditional brushed trolling motors.
With improved Spot-Lock, Drift Mode, advanced GPS navigation, automatic stow/deploy, and One-Boat Network integration, the Ulterra QUEST Q2 helps anglers maintain their position, locate fish and structure, and spend more time fishing.
Key Features
-
QUEST Brushless Motor Technology: Delivers increased torque, improved efficiency, and extended runtime compared to traditional brushed trolling motors.
-
90/115 lbs of Thrust: Dual-voltage operation provides 90 lbs of thrust at 24V or 115 lbs at 36V.
-
60" Carbon-Fiber-Infused Shaft: Durable composite shaft provides additional depth adjustment for boats with higher bow mounting positions.
-
Automatic Stow & Deploy: Raise or lower the trolling motor at the push of a button using the wireless remote, foot pedal, Minn Kota Fishing App, or compatible connected electronics.
-
Electronic Power Trim: Adjust trolling motor depth electronically without manually repositioning the shaft.
-
Built-In Humminbird MEGA Side Imaging: Integrated Side Imaging, Down Imaging, and Dual Spectrum CHIRP sonar capabilities with a compatible Humminbird fish finder.
-
Improved Spot-Lock: Advanced GPS anchoring helps maintain boat position over productive fishing locations.
-
Drift Mode: Combines GPS speed and course control to maintain a controlled drift in changing wind and current.
-
Advanced GPS Navigation: Record tracks, follow routes, and control steering and speed using GPS.
-
Wireless Remote Control: Operate steering, speed, Spot-Lock, automatic stow/deploy, and power trim from the included wireless remote.
-
Heel-Toe Electric Foot Pedal: Included corded foot pedal provides hands-free steering, stow/deploy, and trim control.
-
Draw and Navigate: Create routes on compatible connected electronics and have the trolling motor follow the selected course.
-
Follow Mode: Follow supported depth contours and weed lines using compatible Humminbird electronics and mapping.
-
Intelligent Depth Control: Uses compatible electronics and supported shallow-water anchors to monitor changing depths and activate protective functions.
-
One-Boat Network Compatibility: Integrates with compatible Humminbird fish finders, mapping, and supported Minn Kota equipment.
-
Real-Time Battery Monitoring: Displays battery information and estimated remaining runtime to help manage power consumption.
-
Shallow Water Protection: Protective clutch system helps reduce the risk of damage from accidental bottom strikes.
-
Lifetime Shaft Guarantee: Minn Kota's carbon-fiber-infused composite shaft is backed by a lifetime guarantee.
Specifications
| Feature |
Specification |
| Manufacturer |
Minn Kota |
| Model |
Ulterra QUEST Q2 |
| Manufacturer Part Number |
1358506 |
| Maximum Thrust |
90 lbs at 24V / 115 lbs at 36V |
| Operating Voltage |
24V / 36V DC |
| Shaft Length |
60" |
| Mounting Location |
Bow |
| Application |
Freshwater |
| Motor Technology |
QUEST Brushless |
| Steering |
Electric Steer with Power Steering |
| Control |
Wireless Remote & Corded Foot Pedal |
| Built-In Sonar |
Humminbird MEGA Side Imaging |
| Additional Sonar |
MEGA Down Imaging & Dual Spectrum CHIRP |
| GPS Anchor Lock |
Spot-Lock |
| AutoPilot |
Yes |
| Drift Mode |
Yes |
| One-Boat Network Compatible |
Yes |
| Speed Control |
Variable |
| Digital Maximizer |
Yes |
| Maximum Amp Draw |
60A |
| Automatic Stow/Deploy |
Yes |
| Power Trim |
Yes |
| Lift-Assist |
No |
| Product Weight |
90 lbs |
| Manufacturer Warranty |
2-Year Limited; Extended to 3 Years with Registration |
QUEST Brushless Motor Performance
The Ulterra QUEST Q2 features Minn Kota's advanced brushless motor technology, engineered to deliver greater power, improved efficiency, and longer runtime.
Its dual-voltage design allows operation on either a 24V or 36V trolling motor battery system:
QUEST brushless technology provides increased torque for controlling the boat in wind, current, and heavy vegetation while improving battery efficiency compared to traditional brushed trolling motors.
The 60" shaft provides additional length for boats with higher bow mounting positions, helping maintain proper propeller depth in changing water conditions.
Built-In Humminbird MEGA Side Imaging
The Ulterra QUEST Q2 features an integrated Humminbird MEGA Side Imaging transducer, providing detailed underwater imaging without requiring an externally mounted sonar transducer on the trolling motor.
When connected to a compatible Humminbird fish finder, the built-in sonar supports:
-
MEGA Side Imaging: Scan to the left and right of the boat to identify underwater structure, cover, and fish-holding areas.
-
MEGA Down Imaging: View detailed structure and fish targets directly beneath the boat.
-
Dual Spectrum CHIRP: Display traditional 2D sonar for fish detection, bottom tracking, and target separation.
The integrated transducer and internal cable routing provide a clean installation while helping protect sonar wiring from external damage.
A compatible Humminbird fish finder and the appropriate sonar connection are required to use the built-in imaging capabilities.
Important: This is the MEGA Side Imaging version of the Ulterra QUEST Q2, not the Dual Spectrum CHIRP-only model.
Automatic Stow & Deploy
One of the biggest advantages of the Minn Kota Ulterra QUEST Q2 is its automatic stow and deploy system.
With the push of a button, the trolling motor can be raised or lowered using the wireless remote, foot pedal, Minn Kota Fishing App, or compatible connected electronics.
This eliminates the need to manually lift the trolling motor into position and makes it easier to transition between running and fishing.
Automatic stow/deploy is particularly useful for anglers who frequently move between fishing locations or want convenient trolling motor operation from the console.
Electronic Power Trim
The Ulterra QUEST Q2 features electronic power trim, allowing anglers to adjust the trolling motor's running depth without manually repositioning the shaft.
Trim adjustments can be made using the wireless remote, foot pedal, Minn Kota Fishing App, or compatible connected electronics.
This is useful when fishing in changing water depths, navigating shallow areas, or adjusting propeller depth to match changing conditions.
Advanced GPS Boat Control
The Ulterra QUEST Q2 features Minn Kota's advanced GPS trolling system for accurate positioning and automated navigation.
Improved Spot-Lock automatically maintains your boat's position over a selected fishing location, reducing the need for constant steering corrections.
Drift Mode combines GPS speed and course control to maintain a consistent drift path, even when wind and current change.
Draw and Navigate allows you to draw a route on compatible connected electronics and have the trolling motor follow that course automatically.
Follow Mode works with compatible Humminbird mapping and electronics to follow supported depth contours and weed lines.
Intelligent Depth Control works with compatible connected electronics and supported shallow-water anchors to detect changing depths, provide alerts, and activate supported protective functions.
Certain navigation features require compatible electronics, mapping, or additional connected equipment.
Wireless Remote and Electric Foot Pedal
The Ulterra QUEST Q2 includes both a wireless remote and a corded heel-toe electric foot pedal.
The wireless remote provides convenient control of steering, speed, Spot-Lock, automatic stow/deploy, and power trim.
The foot pedal allows hands-free steering and includes controls for automatic stow/deploy and electronic trim.
Its programmable button provides quick access to supported functions, including waypoint marking, AutoPilot, and compatible shallow-water anchor controls.
Real-Time Battery Monitoring
The Ulterra QUEST Q2 includes real-time battery monitoring to help anglers manage power consumption throughout the day.
The system provides battery information and estimated remaining runtime while the motor is operating.
Supported monitoring features provide low-battery alerts and an Eco Mode option to help conserve remaining power.
One-Boat Network Integration
The Ulterra QUEST Q2 integrates with compatible Humminbird fish finders and supported Minn Kota equipment through the One-Boat Network.
Depending on the connected system, anglers can access supported trolling motor controls, automated GPS navigation features, and coordinated operation with compatible shallow-water anchors.
Additional networking accessories or compatible electronics may be required.
What's Included
-
Minn Kota Ulterra QUEST Q2 90/115 lb Trolling Motor with 60" Shaft
-
Built-In Humminbird MEGA Side Imaging Transducer
-
Wireless Remote Control
-
Remote Lanyard
-
Instant Response Electric-Steer Foot Pedal
-
Mounting Hardware
Minn Kota Part Number: 1358506
Important: This is the Ulterra QUEST Q2 brushless model with built-in MEGA Side Imaging. It is different from the Dual Spectrum CHIRP-only Ulterra QUEST Q2 and the earlier Ulterra QUEST generation. It features automatic stow/deploy and electronic power trim.
Need help selecting the right trolling motor batteries, circuit breaker, mounting hardware, or Humminbird networking accessories? BassFishin Electronics can help you configure and install your Minn Kota Ulterra QUEST Q2 trolling motor.
