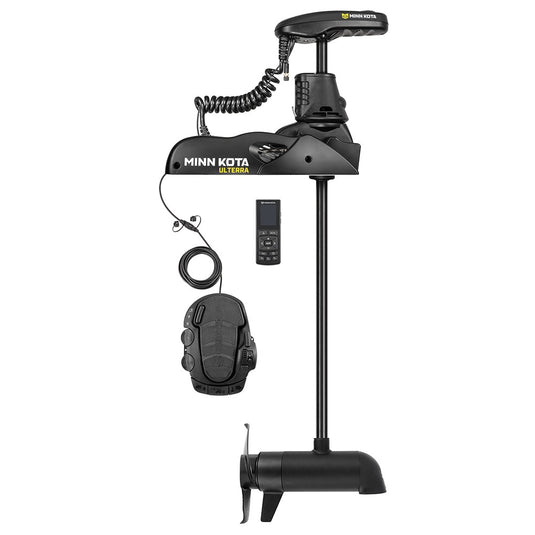

Minn Kota Ulterra 2 80 lb Trolling Motor – 45" Shaft, Dual Spectrum CHIRP, Wireless Remote – 1358977

The Minn Kota Ulterra 2 80 lb Trolling Motor combines automatic stow and deploy, electronic power trim, advanced GPS navigation, and built-in Humminbird Dual Spectrum CHIRP sonar in a powerful freshwater bow-mount trolling motor. Featuring a 45" composite shaft, wireless remote, and programmable electric foot pedal, the Ulterra 2 makes boat control easier by allowing anglers to deploy, stow, and adjust the trolling motor without reaching over the bow.

Powered by a 24V brushed motor delivering 80 lbs of thrust, the Ulterra 2 features Minn Kota's Digital Maximizer technology for efficient variable-speed operation and extended battery runtime.

With improved Spot-Lock, Drift Mode, Power Trim, Auto Stow/Deploy, and integrated Humminbird sonar, the Ulterra 2 delivers advanced boat positioning and hands-free convenience for serious freshwater anglers.

Key Features

• 80 lbs of Thrust: Dependable 24V power for freshwater fishing boats.

• 45" Composite Shaft: Durable shaft suited for bass boats and freshwater boats with lower bow mounting positions.

• Automatic Stow & Deploy: Raise or lower the trolling motor at the push of a button using the wireless remote, foot pedal, or supported connected electronics.

• Electronic Power Trim: Adjust trolling motor depth electronically without manually raising or lowering the shaft.

• Electric Steering with Power Steering: Responsive steering controlled through the wireless remote or included electric foot pedal.

• Built-In Humminbird Dual Spectrum CHIRP: Integrated 2D sonar provides detailed fish detection, bottom tracking, and target separation with compatible Humminbird electronics.

• Improved Spot-Lock: Advanced GPS anchoring helps maintain boat position over productive fishing locations.

• Drift Mode: Combines GPS speed and course control to maintain a consistent drift path.

• Advanced GPS Trolling System: Provides automated boat positioning, steering, speed control, and route navigation.

• Wireless Remote Included: LCD remote provides convenient access to supported trolling motor and GPS functions.

• Programmable Electric Foot Pedal: Heel-toe foot pedal allows hands-free steering, speed control, automatic stowing, deployment, and power trim adjustments.

• Draw and Navigate: Create routes on compatible connected electronics and have the trolling motor follow the selected course.

• Follow Mode: Follow supported depth contours and weed lines using compatible Humminbird electronics and mapping.

• Intelligent Depth Control: Works with compatible electronics and supported shallow-water anchors to respond to changing water depths.

• Shallow Water Protection: Integrated clutch system helps protect the motor from accidental bottom strikes.

• One-Boat Network Compatibility: Integrates with compatible Humminbird fish finders and supported Minn Kota equipment.

• Digital Maximizer: Variable-speed technology helps conserve battery power and extend runtime.

• Weedless Wedge 2 Propeller: Designed for dependable performance around aquatic vegetation.

• Lifetime Composite Shaft Guarantee: Minn Kota's durable composite shaft is backed by a lifetime guarantee.

Specifications

Automatic Stow & Deploy

One of the biggest advantages of the Minn Kota Ulterra 2 is its fully automatic stow and deploy system.

Instead of manually lifting and lowering the trolling motor, anglers can raise or deploy the Ulterra at the push of a button.

Supported control options include:

• Included wireless remote

• Programmable electric foot pedal

• Minn Kota Fishing App

• Compatible connected Minn Kota or Humminbird fish finders

Automatic stow and deploy makes it easier to transition between running the boat and fishing, particularly when operating from the console or when reaching the bow-mounted motor is inconvenient.

Electronic Power Trim

The Ulterra 2 features electronic Power Trim, allowing anglers to adjust trolling motor depth without manually moving the shaft.

Using the wireless remote, foot pedal, or supported connected electronics, the motor can be raised or lowered to maintain proper propeller depth.

This is especially useful when fishing in changing water conditions, shallow water, or areas where the bow height changes with waves and boat movement.

Power Trim also makes it easier to adjust the motor when transitioning between different fishing techniques or water depths.

Built-In Humminbird Dual Spectrum CHIRP Sonar

The Ulterra 2 features an integrated Humminbird Dual Spectrum CHIRP transducer, providing traditional 2D sonar without requiring an externally mounted transducer on the trolling motor.

When connected to a compatible Humminbird fish finder, the built-in sonar provides:

• Dual Spectrum CHIRP: Detailed sonar returns for fish detection, bottom tracking, and underwater structure.

• Target Separation: Helps distinguish individual fish and targets close to the bottom.

• Concealed Transducer Wiring: Internal cable routing protects sonar wiring and maintains a clean trolling motor installation.

The integrated transducer keeps external wiring to a minimum while providing a convenient sonar source at the bow.

A compatible Humminbird fish finder and the appropriate sonar connection are required to use the built-in transducer.

Important: This model includes Dual Spectrum CHIRP 2D sonar only. It does not include built-in MEGA Side Imaging or MEGA Down Imaging.

Electric Steering with Wireless Remote and Foot Pedal

The Minn Kota Ulterra 2 uses an electric steering system with power steering for precise, responsive control.

The wireless remote provides access to steering, speed control, Spot-Lock, AutoPilot, automatic stow/deploy, Power Trim, and other supported GPS navigation features.

The programmable heel-toe electric foot pedal allows hands-free steering and speed adjustments while also providing dedicated control of the automatic stow/deploy and trim functions.

An 18-foot foot pedal cable provides flexibility when positioning the pedal at the bow.

Advanced GPS Boat Control

The Ulterra 2 features Minn Kota's advanced GPS trolling system for accurate positioning and automated navigation.

Improved Spot-Lock automatically maintains your boat's position over a selected fishing location, reducing the need for constant steering corrections.

Drift Mode combines GPS speed and course control to maintain a consistent drift path, even when wind and current change.

AutoPilot maintains a selected heading while the trolling motor makes steering adjustments.

Draw and Navigate allows anglers to create routes on compatible connected electronics and have the trolling motor follow the selected course.

Follow Mode works with compatible Humminbird mapping and electronics to follow supported depth contours and weed lines.

Intelligent Depth Control works with compatible connected electronics and supported shallow-water anchors to detect changing depths, provide alerts, and activate supported protective functions.

Certain advanced navigation features require compatible electronics, mapping, or additional connected equipment.

Digital Maximizer Battery Efficiency

The Ulterra 2 features Minn Kota's Digital Maximizer technology, providing variable-speed control to help conserve battery power.

Rather than operating at fixed speed settings, the motor allows anglers to make precise speed adjustments based on fishing conditions.

A built-in battery meter provides battery status information to help manage available power.

One-Boat Network Integration

The Ulterra 2 integrates with compatible Humminbird fish finders and supported Minn Kota equipment through the One-Boat Network.

Depending on the connected system, anglers can access supported trolling motor controls, GPS navigation features, and coordinated operation with compatible shallow-water anchors.

Additional networking accessories or compatible electronics may be required.

What's Included

• Minn Kota Ulterra 2 80 lb Trolling Motor with 45" Shaft

• Built-In Humminbird Dual Spectrum CHIRP Transducer

• Wireless Remote

• Remote Lanyard

• Heading Sensor

• Programmable Electric Foot Pedal

• Weedless Wedge 2 Propeller

• Mounting Hardware

Minn Kota Part Number: 1358977

Important: This is the Ulterra 2 brushed 80 lb model with a 45" shaft and built-in Dual Spectrum CHIRP sonar. It is different from the brushless Ulterra QUEST Q2 models and the MEGA Down Imaging versions. Unlike the Terrova and Ultrex models, the Ulterra features automatic stow/deploy and electronic Power Trim.
