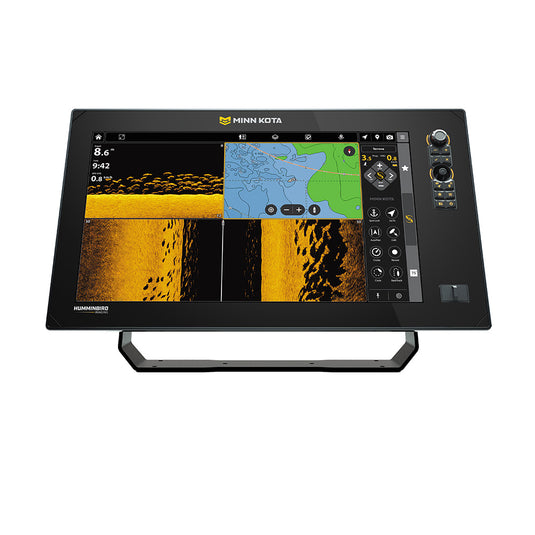

The Minn Kota A19 A Series 19" Fish Finder and Chartplotter combines a massive 18.5" Full HD touchscreen, advanced Humminbird Imaging technology, and integrated boat control into one premium fishing system. Featuring MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar, the A19 delivers exceptional underwater detail to help locate fish, identify structure, and navigate with confidence.
This MSI+ model includes the XM 14 HW MSI T transom-mount transducer, providing detailed Side Imaging, Down Imaging, and traditional 2D sonar. Designed for anglers who demand maximum screen space and advanced connectivity, the A19 integrates compatible Minn Kota trolling motors, shallow water anchors, sonar accessories, and marine networking equipment.
Key Features
-
18.5" Full HD Display: Large 1920 × 1080 touchscreen provides outstanding clarity for viewing sonar, charts, and navigation information, even in direct sunlight, rain, or while wearing polarized sunglasses.
-
MEGA Side Imaging+: High-resolution sonar imaging reveals fish, cover, and underwater structure on both sides of the boat.
-
MEGA Down Imaging+: Detailed underwater views help identify fish and structure directly beneath your boat.
-
Dual Spectrum CHIRP Sonar: Traditional 2D sonar provides excellent target separation and fish identification.
-
Minn Kota System Integration: Connect compatible trolling motors, fish finders, mapping, and shallow water anchors for coordinated boat control.
-
Draw and Navigate: Draw a course directly on the touchscreen and let a compatible Minn Kota trolling motor follow the selected route.
-
Cross Touch Interface: Operate the display using the touchscreen or physical keypad.
-
Built-In GPS Navigation: Save waypoints, create routes, record tracks, and navigate to fishing locations.
-
AutoChart Live: Create custom fishing maps with depth contours, bottom hardness, and vegetation information.
-
Minn Kota Fishing App: Wirelessly connect and manage supported equipment and system features.
-
Dual Ethernet Ports: Connect compatible displays and marine networking accessories.
-
Dual Sonar Ports: Expand sonar capabilities with supported transducers and accessories.
-
HDMI Video Input & Output: Connect compatible video equipment and external displays.
-
NMEA 2000 Connectivity: Integrate compatible marine electronics and vessel data.
-
Wi-Fi & Bluetooth Connectivity: Support wireless integration and compatible system functions.
Specifications
| Feature |
Specification |
| Manufacturer |
Minn Kota |
| Series |
A Series |
| Model |
A19 MSI+ VX |
| Part Number |
412480-1VX |
| Display Size |
18.5" |
| Display Resolution |
1920 × 1080 Full HD |
| Display Type |
Color Touchscreen |
| Controls |
Touchscreen & Keypad |
| Sonar Technology |
Dual Spectrum CHIRP, MEGA DI+, MEGA SI+ |
| Included Transducer |
XM 14 HW MSI T |
| Side Imaging Range |
Up to 800 ft side-to-side at 455 kHz |
| Down Imaging Depth |
Up to 400 ft at 455 kHz |
| GPS |
Built-In |
| Networking |
Dual Ethernet, NMEA 2000 |
| Video Connectivity |
HDMI Input & Output |
| Wireless Connectivity |
Wi-Fi, Bluetooth |
| Memory Card Slots |
Dual microSD |
| Power Input |
10.8–20 VDC |
| Power Draw |
4.5 Amps |
Compatibility
The Minn Kota A19 MSI+ integrates with compatible marine electronics and accessories, including:
-
Compatible Minn Kota trolling motors
-
Minn Kota Talon shallow water anchors
-
Compatible Humminbird Imaging transducers
-
Supported Ethernet networking equipment
-
NMEA 2000 marine networks
-
Compatible HDMI video equipment
-
Optional compatible mapping and charting accessories
Additional networking cables, adapters, or accessories may be required depending on your installation.
What's Included
Manufacturer Part Number: 412480-1VX
Need help selecting the right electronics mounts, networking cables, or wiring accessories? BassFishin Electronics can help you configure your Minn Kota electronics system for your boat.
