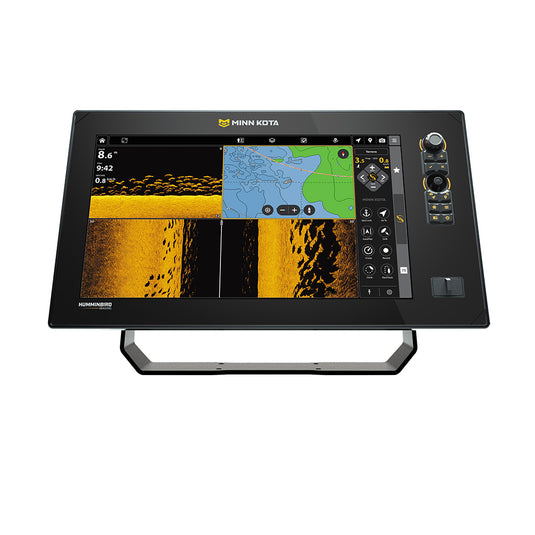

The Minn Kota A16 A Series 16" Fish Finder and Chartplotter combines a large Full HD display, advanced Humminbird Imaging technology, and integrated boat control into one powerful fishing system. Featuring MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar, the A16 delivers exceptional underwater detail to help locate fish, identify structure, and navigate with confidence.
This MSI+ model includes the XM 14 HW MSI T transom-mount transducer, providing high-definition sonar imaging right out of the box. Designed for anglers who want a fully integrated electronics setup, the A16 connects compatible Minn Kota trolling motors, shallow water anchors, sonar accessories, and networking equipment.
Key Features
-
15.6" Full HD Display: Large 1920 × 1080 color touchscreen with keypad controls for exceptional detail and visibility in sunlight, rain, and wet conditions.
-
MEGA Side Imaging+: High-resolution imaging provides detailed views of fish, cover, and structure on both sides of the boat.
-
MEGA Down Imaging+: View detailed underwater structure and fish directly beneath your boat.
-
Dual Spectrum CHIRP Sonar: Exceptional 2D sonar performance with improved target separation and fish identification.
-
Minn Kota System Integration: Connect compatible trolling motors, fish finders, mapping, and shallow water anchors for coordinated boat control.
-
Intelligent Depth Control: Monitors depth changes and can automatically engage compatible Spot-Lock and shallow water anchor functions when needed.
-
Live Sonar Compatible: Supports compatible live sonar accessories for real-time views of fish movement and lure presentation. Live sonar equipment sold separately.
-
AutoChart Live: Create custom fishing maps showing depth contours, bottom hardness, and vegetation.
-
Built-In GPS Navigation: Save waypoints, create routes, record tracks, and navigate fishing locations.
-
Cross Touch Interface: Operate the display using the responsive touchscreen or physical keypad.
-
Wireless Connectivity: Use the Minn Kota Fishing App to manage compatible equipment, waypoints, and system features.
-
Ethernet & NMEA 2000 Networking: Connect additional compatible displays, sonar accessories, and marine electronics.
-
Wi-Fi Software Updates: Download and install software updates directly through the display.
Specifications
| Feature |
Specification |
| Manufacturer |
Minn Kota |
| Series |
A Series |
| Model |
A16 MSI+ VX |
| Part Number |
412460-1VX |
| Display Size |
15.6" |
| Display Resolution |
1920 × 1080 Full HD |
| Display Type |
Color TFT Touchscreen |
| Controls |
Touchscreen & Keypad |
| Standard Sonar |
Dual Spectrum CHIRP, MEGA DI+, MEGA SI+ |
| Included Transducer |
XM 14 HW MSI T |
| Maximum Standard Sonar Depth |
1,200 ft |
| Maximum Side Imaging Range |
800 ft side-to-side |
| GPS |
Built-In |
| Waypoint Capacity |
10,000 |
| Networking |
Ethernet, NMEA 2000 |
| Memory Card Slots |
Dual microSD |
| Power Input |
10.8–20 VDC |
| Power Draw |
3.5 Amps |
Compatibility
The Minn Kota A16 MSI+ integrates with compatible Minn Kota and Humminbird marine electronics, including:
-
Compatible Minn Kota trolling motors
-
Minn Kota Talon shallow water anchors
-
Compatible MEGA Imaging transducers
-
Compatible live sonar systems
-
Supported Ethernet networking accessories
-
NMEA 2000 marine networks
-
Optional Minn Kota Maps Premium charting
Additional accessories or networking components may be required depending on your installation.
What's Included
Manufacturer Part Number: 412460-1VX
Need help selecting the right mounts, networking cables, or wiring accessories? BassFishin Electronics can help you configure your Minn Kota electronics system for your boat.
