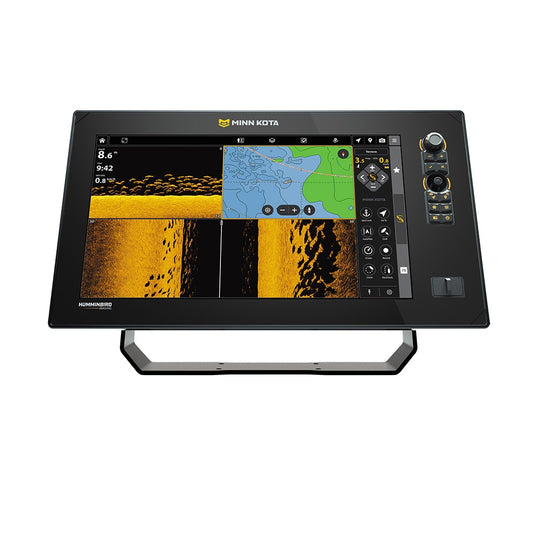

The Minn Kota A16 A Series 16" Fish Finder and Chartplotter combines a large 15.6" Full HD touchscreen, advanced Humminbird Imaging technology, and integrated boat control into one powerful fishing system. Designed for serious anglers, the A16 delivers detailed sonar imaging, advanced GPS navigation, and seamless integration with compatible Minn Kota trolling motors and shallow water anchors.
This Control Head Only (CHO) model does not include a transducer. It's ideal for anglers connecting to compatible Minn Kota trolling motors with built-in sonar, adding a separate transducer or live sonar system, or sharing sonar data from a networked Minn Kota or Humminbird fish finder.
Key Features
-
15.6" Full HD Display: Large 1920 × 1080 color touchscreen provides exceptional clarity for viewing sonar, charts, and navigation information in direct sunlight and wet conditions.
-
Humminbird Imaging Technology: Supports MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar with compatible transducers.
-
Minn Kota System Integration: Connect compatible trolling motors, fish finders, mapping, and shallow water anchors for coordinated boat control.
-
Intelligent Depth Control: Detects changing water depths, provides alerts, and can automatically engage compatible Spot-Lock and shallow water anchors when necessary.
-
Live Sonar Compatible: Supports compatible live sonar accessories for real-time fish tracking and lure presentation. Live sonar equipment sold separately.
-
AutoChart Live: Create custom fishing maps with depth contours, bottom hardness, and vegetation information. Includes eight hours of built-in recording time.
-
Built-In GPS Navigation: Save waypoints, create routes, record tracks, and navigate to fishing locations.
-
Cross Touch Interface: Operate the display using the responsive touchscreen or physical keypad.
-
Minn Kota Fishing App: Wirelessly manage compatible equipment, organize waypoints, and access supported system features.
-
Ethernet Networking: Connect additional compatible displays, sonar accessories, and networking equipment.
-
NMEA 2000 Connectivity: Integrate compatible vessel data and marine electronics.
-
Wi-Fi Software Updates: Download software updates directly to the display and distribute supported updates to connected equipment.
-
Screenshot & Sonar Recording: Capture underwater images and record sonar data for later review.
Specifications
| Feature |
Specification |
| Manufacturer |
Minn Kota |
| Series |
A Series |
| Model |
A16 CHO VX |
| Part Number |
412460-1VXCHO |
| Display Size |
15.6" |
| Display Resolution |
1920 × 1080 Full HD |
| Display Type |
Color TFT Touchscreen |
| Controls |
Touchscreen & Keypad |
| Supported Sonar |
Dual Spectrum CHIRP, MEGA DI+, MEGA SI+ |
| Transducer Included |
No – Control Head Only |
| Maximum Standard Sonar Depth |
1,200 ft with compatible transducer |
| Maximum Side Imaging Range |
800 ft side-to-side with compatible transducer |
| GPS |
Built-In |
| Waypoint Capacity |
10,000 |
| Route Capacity |
50 |
| Networking |
Ethernet, NMEA 2000 |
| Memory Card Slots |
Dual microSD |
| Power Input |
10.8–20 VDC |
| Power Draw |
3.5 Amps |
Compatibility
The Minn Kota A16 CHO integrates with compatible Minn Kota and Humminbird marine electronics, including:
-
Compatible Minn Kota trolling motors with built-in sonar
-
Minn Kota Talon shallow water anchors
-
Compatible MEGA Imaging transducers
-
Compatible live sonar systems
-
Supported Minn Kota and Humminbird Ethernet networks
-
NMEA 2000 marine networks
-
Optional Minn Kota Maps Premium charting
Additional transducers, networking cables, or accessories may be required depending on your installation.
What's Included
Manufacturer Part Number: 412460-1VXCHO
Important: This is a Control Head Only model. No transducer is included. A compatible transducer or networked sonar source is required for sonar imaging.
Need help selecting the right transducer, mounting hardware, networking cables, or wiring accessories? BassFishin Electronics can help you configure your Minn Kota electronics system for your boat.
