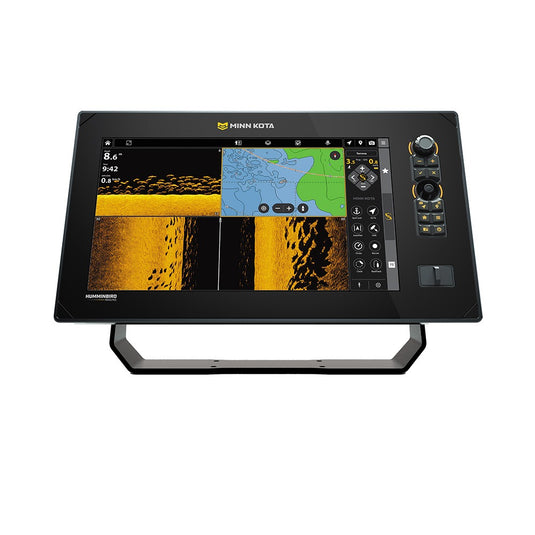

The Minn Kota A13 A Series 13.3" Fish Finder and Chartplotter delivers high-definition sonar imaging, advanced navigation, and integrated boat control in one powerful display. Powered by Humminbird Imaging technology, the A13 combines detailed sonar performance with Minn Kota trolling motor and shallow water anchor integration.
This Control Head Only (CHO) model does not include a transducer. It's ideal for anglers connecting to compatible trolling motors with built-in sonar, adding a separate transducer or live sonar system, or expanding an existing compatible Minn Kota or Humminbird network.
Key Features
-
13.3" Full HD Display: Bright 1920 × 1080 resolution with touchscreen and keypad controls for clear viewing in direct sunlight and wet conditions.
-
Humminbird Imaging Technology: Supports MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar with compatible transducers.
-
Minn Kota System Integration: Connect compatible trolling motors, fish finders, and shallow water anchors for coordinated boat control.
-
Intelligent Depth Control: Detects changing water depths and can engage compatible Spot-Lock and shallow water anchor functions.
-
Live Sonar Compatible: Supports compatible live sonar accessories for real-time fish tracking. Live sonar equipment sold separately.
-
AutoChart Live: Create custom fishing maps with depth contours, bottom hardness, and vegetation information.
-
Advanced GPS Navigation: Built-in GPS with waypoint, route, and track management.
-
Wireless Connectivity: Manage compatible equipment and waypoints through the Minn Kota Fishing App.
-
Ethernet & NMEA 2000 Networking: Integrate compatible marine electronics, sonar accessories, and vessel data.
-
Wi-Fi Software Updates: Download software updates directly to the display.
Specifications
| Feature |
Specification |
| Manufacturer |
Minn Kota |
| Model |
A13 A Series |
| Part Number |
412440-1VXCHO |
| Display Size |
13.3" |
| Display Resolution |
1920 × 1080 Full HD |
| Display Interface |
Touchscreen & Keypad |
| Sonar Technology |
Dual Spectrum CHIRP, MEGA SI+, MEGA DI+ |
| GPS |
Built-In |
| Networking |
Ethernet, NMEA 2000 |
| Memory Card Slots |
Dual microSD |
| Power Input |
10.8–20 VDC |
| Power Draw |
2.5 Amps |
| Configuration |
Control Head Only |
Compatibility
The Minn Kota A13 CHO is designed for use with compatible Minn Kota trolling motors, sonar accessories, and networked Minn Kota or Humminbird electronics.
-
Compatible Minn Kota trolling motors with integrated sonar
-
Compatible MEGA Imaging transducers
-
Compatible live sonar systems
-
Supported Minn Kota and Humminbird Ethernet networks
-
Compatible shallow water anchors and boat control accessories
Important: This model does not include a transducer. A compatible sonar source or separately purchased transducer is required for sonar imaging.
What's Included
Manufacturer Part Number: 412440-1VXCHO
Need help selecting the right transducer, networking accessories, or installation components? Contact BassFishin Electronics for assistance with your Minn Kota setup.
