Lowrance Yamaha Engine Interface Cable – 15 ft – 000-0120-37

Connect a compatible Yamaha outboard to your boat’s NMEA 2000 network with the Lowrance Yamaha Engine Interface Cable. This 15-foot cable allows engine information to be viewed on a compatible networked display without requiring Yamaha CommandLink Plus.

View engine data such as RPM, engine hours, charging voltage, temperature and fuel flow. Available information depends on the engine and installed sensors.

Compatibility

Designed for select 2006-and-newer Yamaha outboards:

• Four-stroke: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F250 and LF250.
• Two-stroke: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300 and VZ300.

A NMEA 2000 network is required. If your boat does not already have one, add a network starter kit, sold separately. Digital trim requires connection by a Yamaha dealer.

Contact BFE with your engine year, full model number and display model if you need help confirming compatibility.

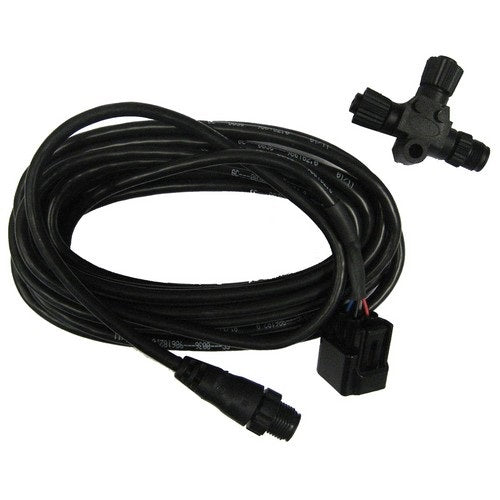

What’s Included

• 15-foot Yamaha engine interface cable
• NMEA 2000 T-connector

Manufacturer Part Number: 000-0120-37
Also listed as: 120-37
