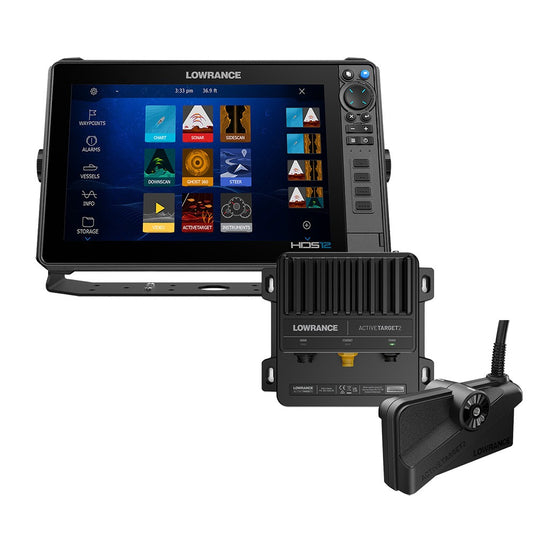

The Lowrance HDS PRO 12 & ActiveTarget 2 Bundle combines a 12-inch SolarMAX HD touchscreen fishfinder/chartplotter with ActiveTarget 2 live sonar. Watch fish move around structure, track your lure, and see how fish respond to your presentation in real time.
Preloaded C-MAP DISCOVER OnBoard charts help you locate fishing areas with detailed inland and coastal coverage, custom depth shading, and 1-foot contours on more than 19,000 U.S. lakes and 9,400 Canadian lakes.
Key Features
- 12-inch SolarMAX HD touchscreen with 1280 × 800 resolution and visibility through polarized sunglasses.
- ActiveTarget 2 live sonar with Forward, Down, and Scout views.
- Touchscreen and keypad controls with programmable shortcut keys.
- C-MAP Genesis Live support for creating depth maps as you fish.
- Two Ethernet ports, NMEA 2000, Wi-Fi, and Bluetooth connectivity.
- Two microSD card slots for compatible mapping and storage.
- Supports optional Active Imaging HD sonar with a compatible HD transducer.
Transducer Configuration
This bundle includes the ActiveTarget 2 sonar module and live sonar transducer. A conventional CHIRP, SideScan, or DownScan transducer is not included. Add a compatible conventional transducer separately for those sonar functions.
SideScan FishReveal requires an S3100 sonar module and compatible FishReveal transducer, sold separately.
What’s Included
- Lowrance HDS PRO 12 fishfinder/chartplotter
- Preloaded C-MAP DISCOVER OnBoard charts
- ActiveTarget 2 sonar module
- ActiveTarget 2 live sonar transducer
Lowrance Bundle Part Number: 000-16662-001
