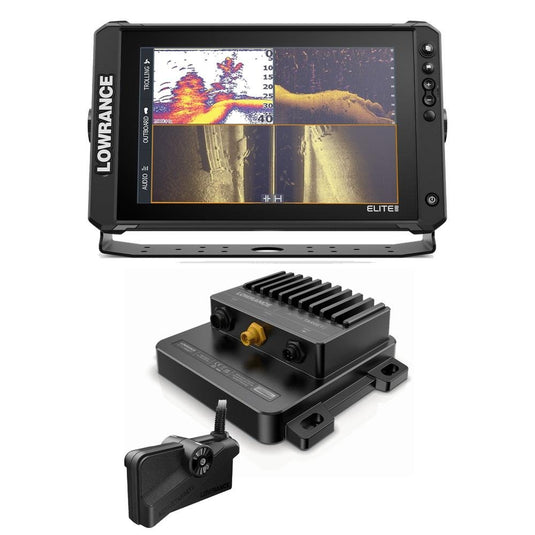

The Lowrance Elite FS 12 & ActiveTarget 2 Bundle pairs a 12-inch touchscreen fishfinder/chartplotter with an ActiveTarget 2 live sonar module and transducer. Watch fish move around cover, track your lure, and see how fish respond to your presentation in real time.
Preloaded C-MAP DISCOVER OnBoard charts help you locate ledges, drop-offs, and other fishing areas, with 1-foot contours on 19,000 U.S. lakes and more than 9,400 Canadian lakes.
Key Features
-
12-inch multi-touch display with 1280 × 800 resolution.
-
Included ActiveTarget 2 system provides Forward, Down, and Scout live sonar views.
-
Preloaded C-MAP DISCOVER OnBoard inland and coastal mapping.
-
C-MAP Genesis Live support for creating depth maps as you fish.
-
Integrated Ethernet, NMEA 2000, and wireless connectivity.
-
Supports optional Active Imaging 3-in-1 sonar.
-
Supports optional Active Imaging HD with an S3100 sonar module and compatible HD transducer, sold separately.
Transducer Configuration
This bundle includes the ActiveTarget 2 live sonar transducer. A conventional CHIRP, SideScan, or DownScan transducer is not included. Add a compatible conventional transducer separately if you want those sonar functions.
ActiveTarget 2 operates as a full-screen view on the Elite FS 12. ActiveTarget split-screen viewing is not supported on this model.
What’s Included
-
Lowrance Elite FS 12 display with preloaded C-MAP DISCOVER OnBoard charts
-
Display suncover
-
Display mounting bracket and knobs
-
Corner clip
-
Display power cable, fuse, and fuse holder
-
ActiveTarget 2 sonar module
-
ActiveTarget 2 live sonar transducer
-
ActiveTarget power cable
-
15-foot Ethernet cable
Bundle Part Number: 000-16498-001
