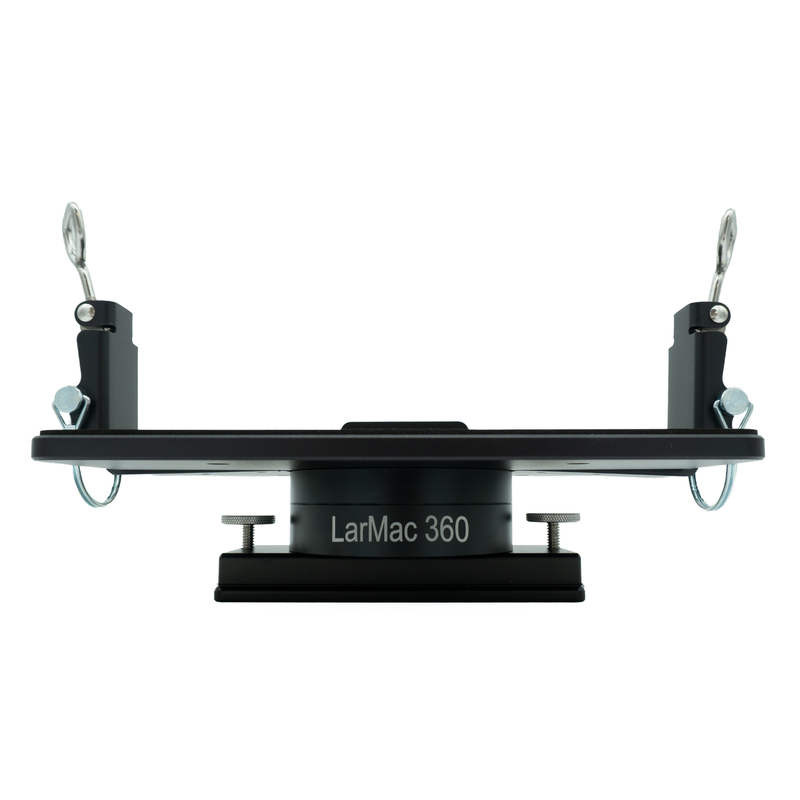

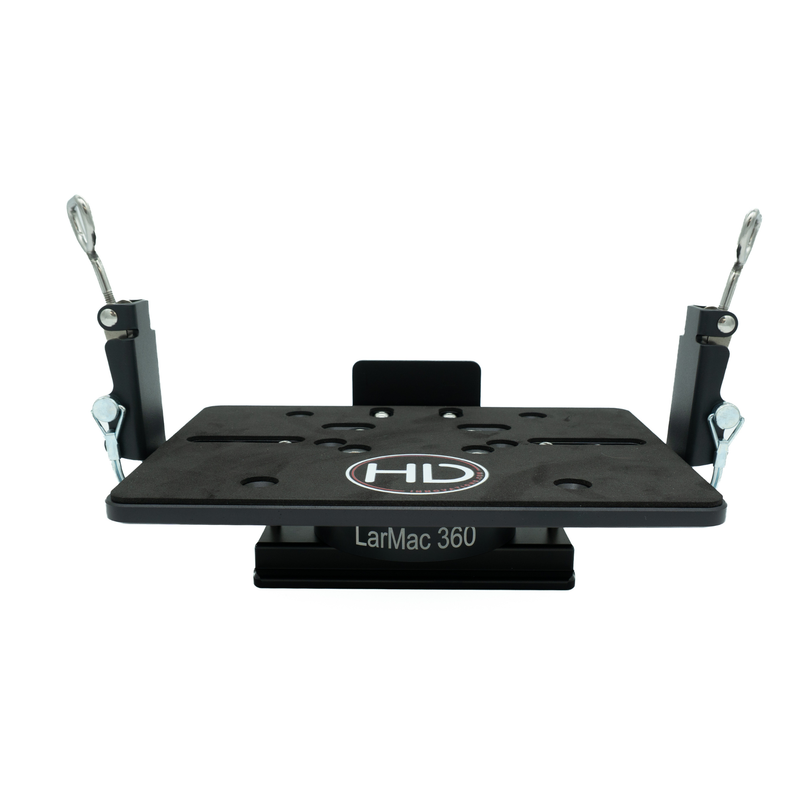

HD SHUTTLE DOCKING SYSTEM W/LARMAC 360 (HDSD-LRMC)

HD SHUTTLE DOCKING SYSTEM W/ LARMAC (HDSD-LRMC)

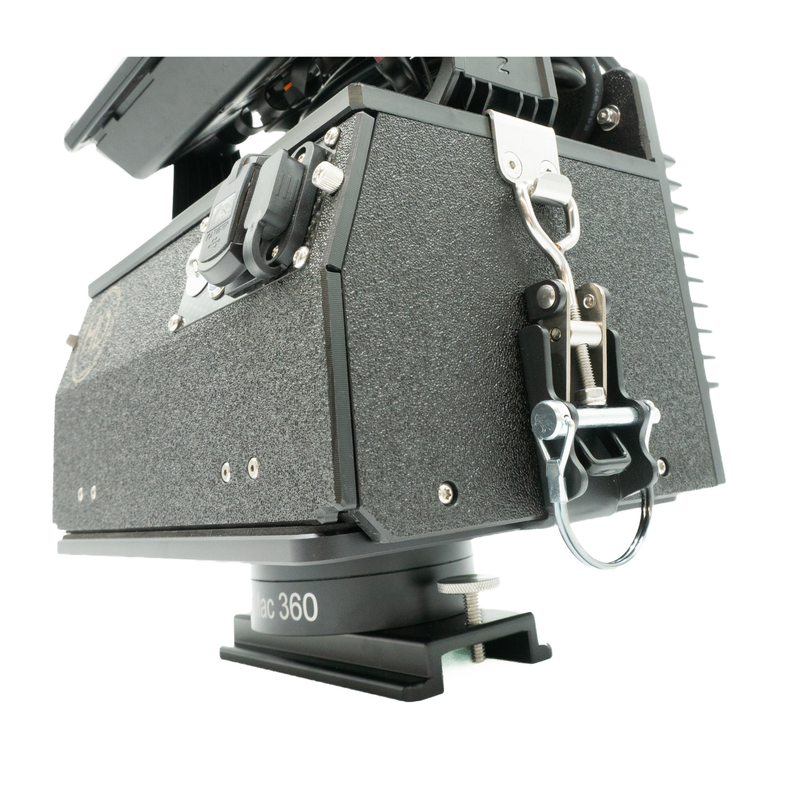

This system is designed to seamlessly mount the HDI Shuttle securely to any surface. Made from 8mm 6061 aluminum plate, proprietary stainless steel 1 piece latches, EVA foam top vibration / thermal pad to isolate the shuttle from the environment and reduce impact to sensitive electronics. The HDI Docking system is fully compatible with out any modification. The HDI shuttle is pre-drilled for simple assembly. Compatible with all 3" standard track systems by Traxtech, Cisco, Titelok, Fingear. BE ADVISED: 12" Track Length Minimum

Plate mounting hole patterns for Larmac 360, " Rod holder" pattern, and 5x5 seat pedestal.

Larmac 360 rotating system information HERE

Other shuttle compatibility (with user shuttle modification)

• Summit shuttle
• Arclab Shuttle
• Fingear Tech shuttle
• Clam Live Shuttle

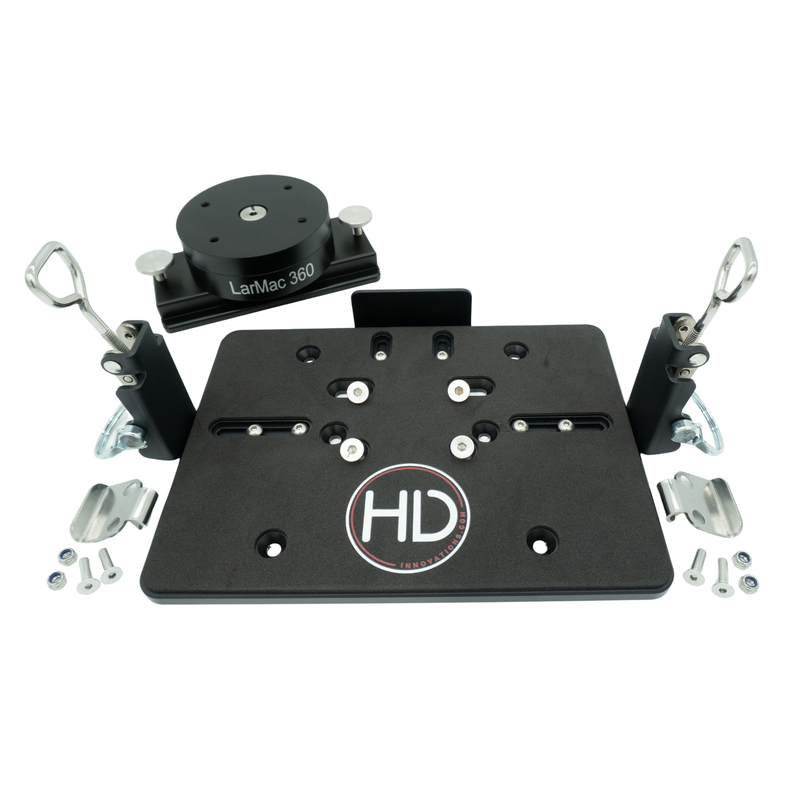

This system includes:

• (1) Aluminum dock base
• (2) Stainless clamp arms
• (1) Aluminum backstop
• (2) Stainless Shuttle latches
• (2)D Locking pins
• (4) Stainless Plate to rotate screws
• (1) Larmac 360 Rotator
• (1) Larmac 3" Track adapter
• (2) Larmac Stainless Thumbscrew

 *Mounting Track Not included

*HDI Shuttle not included
