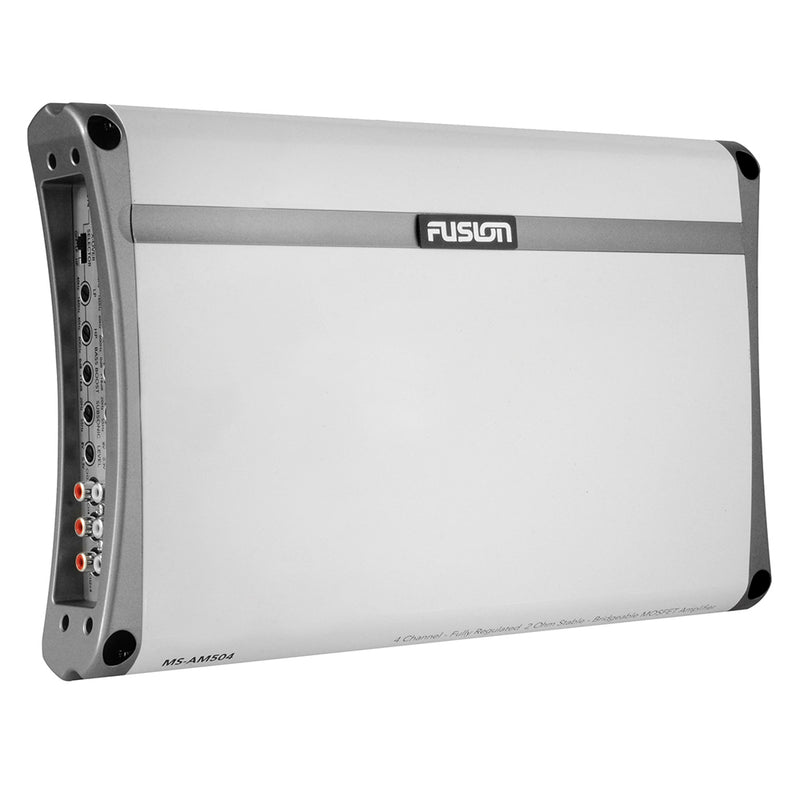

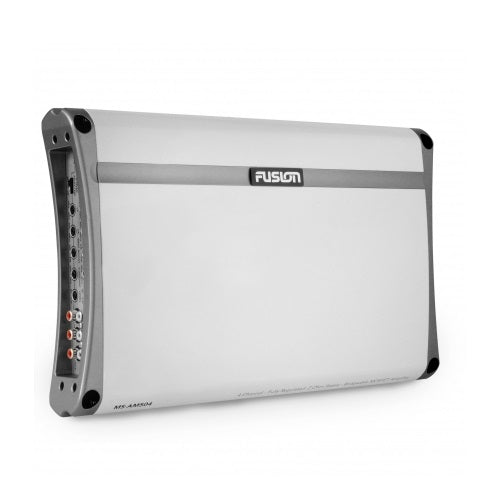

Fusion Ms-am504 Amplifier 4 Channel 500 Watts

Vendor Fusion
Regular price $339.99
Sale price $339.99 Regular price $339.99
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Fusion MS-AM504 500 Watt 4 Channel Amplifier

Model: 010-01500-00
UPC: 0753759139254
  • Excellent to power the SW10 Sub-woofer or two pairs of speakers in parallel.
  • 2-Ohm Stable
  • Boat Amps feature conformal coated boards, stainless steel end-caps, Fusion Intercooled, Semi-Conductor Technology (F.I.S.T.)
  • Fusion Regulated Amplifier Technology (F.R.A.T.)
  • Subsonic Filter
  • Variable Low and High Pass filters
  • Variable Bass Boost 0 - + 18dB
  • 4 Gauge Power and Ground Connections
  • Nickel Plated Audio Input and Output RCA Connections
  • Nickel Plated RCA Output for multi-amp Installations
Specifications
Frequency response 5Hz - 38kHz +/- 3dB
Peak power 500 watts
Rated power 14.4 Volt power output specification 65 Watts RMS x 4 @ 4? 1% THD+N 100 Watts RMS x 4 @ 2? 1% THD+N 200 Watts RMS x 2 @ 4? Bridged 1% THD+N
Signal to noise >95dB
Separation >60dB
Input sensitivity 300mV - 8V
LP variable crossover 40Hz - 160Hz @ 18dB/octave
Hp variable crossover 40Hz - 600Hz @ 18dB/octave
variable bass boost 0 - + 18dB @ 45Hz
variable subsonic filter 20Hz - 55Hz @ 18dB/octave
Input impedance 20k?
Damping factor >200
T.H.D. 0.05%
Fuse rating 2 x 25A
Dimensions 9.16"" (W) x 14.64""(L) x 2.12(H)

What's in the Box:
  • Amplifier
  • owners manual
