SKU: CW78012

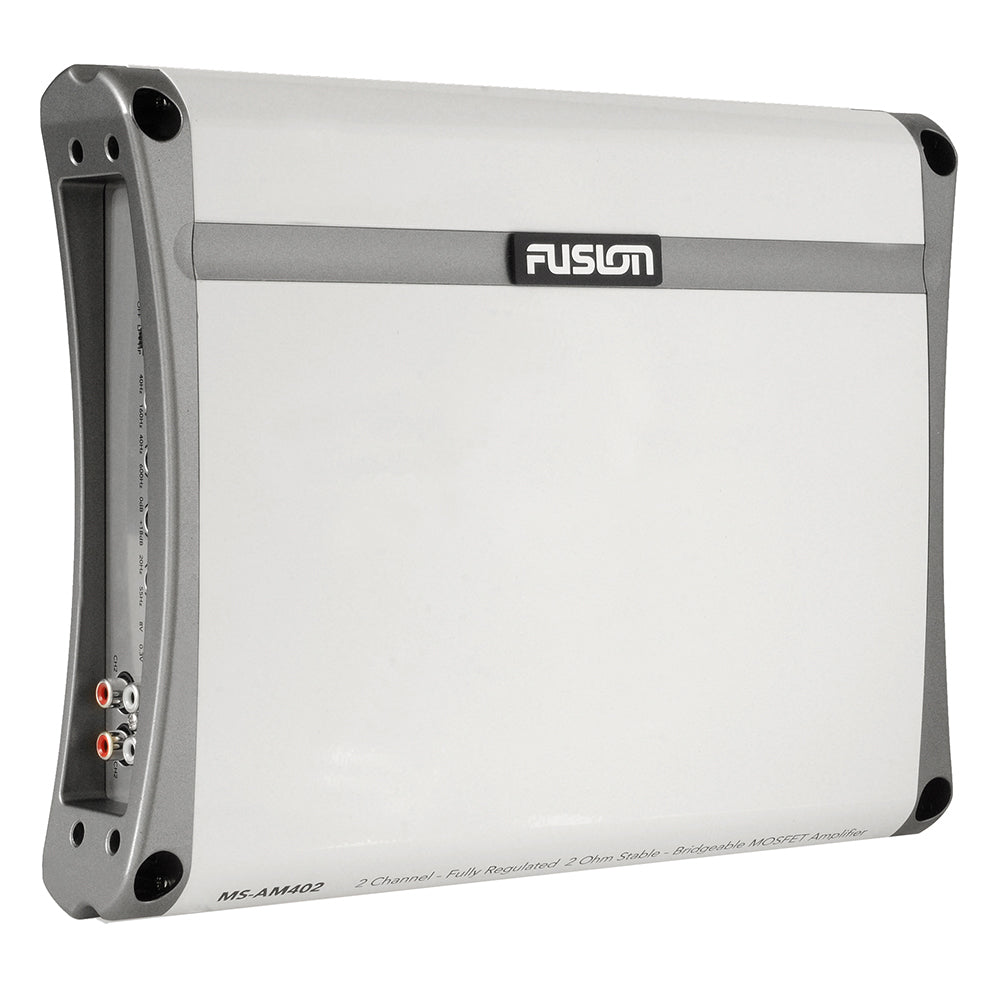

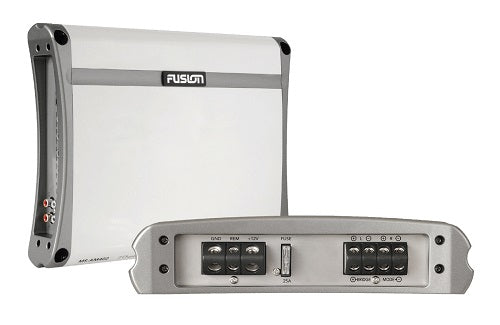

Fusion Ms-am402 Amplifier 2 Channel 400 Watts

Vendor Fusion
Regular price $229.99
Sale price $229.99 Regular price $229.99
Sale Sold out
Unit price
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Fusion MS-ASM402 2 Channel Marine Amplifier

Model: 010-01499-00
UPC: 07537591392471
  • Class AB Design - The 400 Watt 2-Ohm stable (per channel) design ensures clean and powerful amplification of the input signal, enough to rock the boat.
  • Conformal Coated Circuitry - Provides added protection from salt air and moisture to ensure maximum product life.
  • RCA Line Out - A pass through RCA output enables linking of multiple amplifiers for enhanced system performance
  • 2 Channels - Capable of powering 2 speakers, a sub (bridged) or 4 speakers in parallel.
  • Marien Grade Chassis - Stainless steel end caps and bottom plate provide a stunning finish with added environmental protection.
  • Heat Sink Technology - Transfers heat more efficiently and offers more thermal stability for maximum component reliability.
Peak Power 400 Watts
Rated Power 14.4 Volt Power Output Specification
65 Watts RMS x 2 @ 4 Ohm 1% THD+N
100 Watts RMS x 2 @ 2 Ohm 1% THD+N
200 Watts RMS x 1 @ 4 Ohm Bridged 1% THD+N
Signal to noise >95dB
Seperation >60dB
Input sensitivity 300mV - 8V
LP variable crossover 40Hz - 160Hz @ 12dB/octave
HP variable crossover 40Hz - 600Hz @ 12dB/octave
Variable bass boost 0 - + 18dB @ 45Hz
Variable subsonic filter 20Hz - 55Hz @ 18dB/octave
Input impedance 20k?
Damping factor >200
T.H.D. 0.05%
Fuse ratings 1 x 25amp
Dimensions 296mm L x 230mm W x 53mm H (11-2/3" L x 9" W x 2-1/6" H)

What's in the Box:
  • Fusion AM Series Marine Amplifie400-Watt 2 Channel Marine Amplifier
  • Documentation
