Garmin ECHOMAP Ultra 2 106sv with GT56 - Remanufactured
Get the performance and features of the Garmin ECHOMAP Ultra 2 106sv at a reduced price with this Garmin remanufactured package.
The ECHOMAP Ultra 2 106sv features a bright 10" WXGA IPS touchscreen with keyed assist, built-in Garmin Navionics+ U.S. Inland & Coastal mapping, advanced Garmin sonar capabilities, LiveScope compatibility, and extensive networking options.
This package includes the Garmin GT56UHD-TM transducer for traditional CHIRP sonar along with Ultra High-Definition ClearVü and SideVü scanning sonar.
Garmin Remanufactured
This is a Garmin remanufactured product and is not being sold as new.
Garmin remanufactured electronics are an excellent option for anglers looking for current Garmin technology at a lower price.
Garmin Part Number: 010-N2880-01

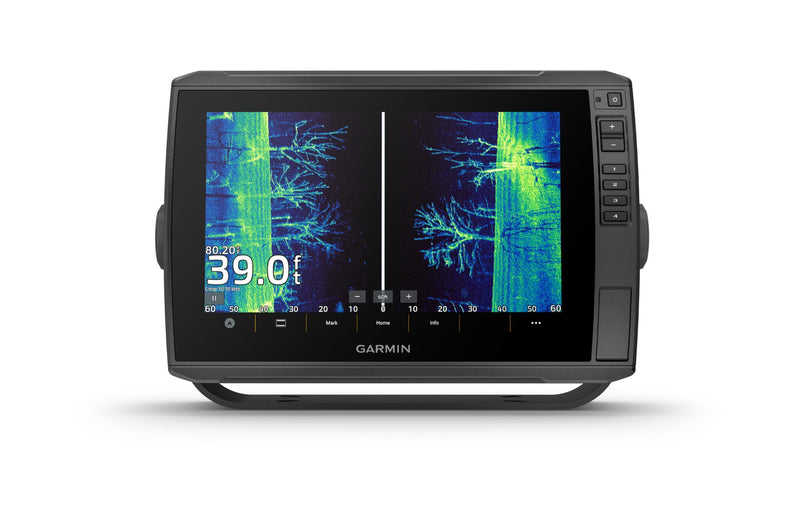

10" ECHOMAP Ultra 2 Display
The ECHOMAP Ultra 2 106sv features a 10" sunlight-readable WXGA IPS touchscreen with 1280 x 800 resolution.
Garmin combines the touchscreen with keyed assist, giving you both touchscreen control and physical buttons for commonly used functions while on the water.
GT56UHD-TM Transducer Included
This package includes the Garmin GT56UHD-TM all-in-one transducer.
The GT56 provides:
- High-wide CHIRP traditional sonar
- Ultra High-Definition ClearVü scanning sonar
- Ultra High-Definition SideVü scanning sonar
- High-contrast vivid scanning sonar color palettes
This makes the package a complete sonar solution right out of the box while still allowing the system to be expanded with Garmin LiveScope.
Garmin LiveScope Compatible
The ECHOMAP Ultra 2 106sv is compatible with Garmin LiveScope live-scanning sonar systems.
LiveScope can be added separately for anglers who want forward-facing sonar for locating and targeting fish in real time.
LiveScope system sold separately.
Garmin Navionics+ Mapping
Built-in Garmin Navionics+ U.S. Inland & Coastal mapping provides detailed chart coverage right out of the box.
The Ultra 2 also supports compatible premium Garmin mapping options for anglers looking for additional mapping features.
Advanced Networking
The ECHOMAP Ultra 2 106sv is designed to integrate into larger Garmin electronics systems.
Networking features include:
- 2 Garmin Marine Network ports
- NMEA 2000 connectivity
- NMEA 0183 compatibility
- Wi-Fi connectivity
- ANT+ connectivity
- Wireless sharing between compatible Garmin displays
Compatible ECHOMAP Ultra 2 and ECHOMAP UHD2 displays can wirelessly share sonar, waypoints and routes.
LiveScope sonar requires a wired Garmin Marine Network connection when sharing LiveScope between compatible displays.
Multi-Band GPS
Multi-band, multi-constellation GPS provides accurate positioning for navigation, waypoint management and boat positioning.
The system supports multiple global navigation satellite systems including GPS, GLONASS, Galileo and BeiDou.
Key Features
- 10" WXGA IPS touchscreen display
- 1280 x 800 resolution
- Touchscreen with keyed assist
- Garmin Navionics+ U.S. Inland & Coastal mapping
- GT56UHD-TM transducer included
- Traditional Garmin CHIRP sonar
- Ultra High-Definition ClearVü
- Ultra High-Definition SideVü
- Garmin LiveScope compatible
- Multi-band GPS
- 2 Garmin Marine Network ports
- NMEA 2000 compatible
- Wi-Fi and ANT+ connectivity
- Dual microSD card slots
- Bail mount and flush-mount capability
- IPX7 water rating
What's Included
- Garmin ECHOMAP Ultra 2 106sv remanufactured chartplotter
- GT56UHD-TM transducer
- Power/data cable
- Bail mount with quick-release cradle
- Protective sun cover
- Mounting hardware
- Documentation
- Built-in Garmin Navionics+ U.S. Inland & Coastal mapping
Specifications
| Specification |
Details |
| Display Size |
10" diagonal |
| Display Resolution |
1280 x 800 |
| Display Type |
WXGA IPS |
| Touchscreen |
Yes |
| Controls |
Touchscreen with keyed assist |
| Dimensions |
11.6" x 7.7" x 3.9" |
| Weight |
4.0 lb |
| Water Rating |
IPX7 |
| Sonar Output |
600W |
| Transducer Connection |
12-pin |
| Garmin Marine Network Ports |
2 |
| NMEA 2000 |
Yes |
| Memory |
2 microSD card slots |
| Mounting |
Bail or flush mount |
Important Condition Information
Condition: Garmin Remanufactured
This product is a Garmin remanufactured unit and is not being sold as new. Please review the product condition before purchasing.
If you have questions about compatibility with LiveScope, Garmin networking, transducers, mapping, or your existing electronics system, contact BassFishin Electronics before ordering.
